OpenLayers를 활용하여 객체 생성 / 수정 / 삭제 / 조회 기능 구현하기
- 지도 로딩

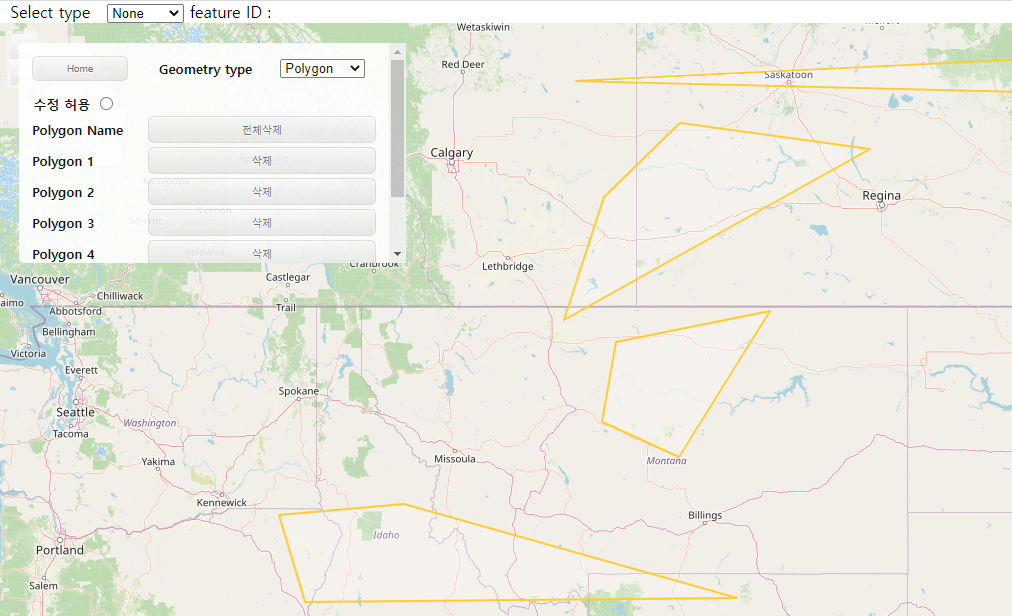

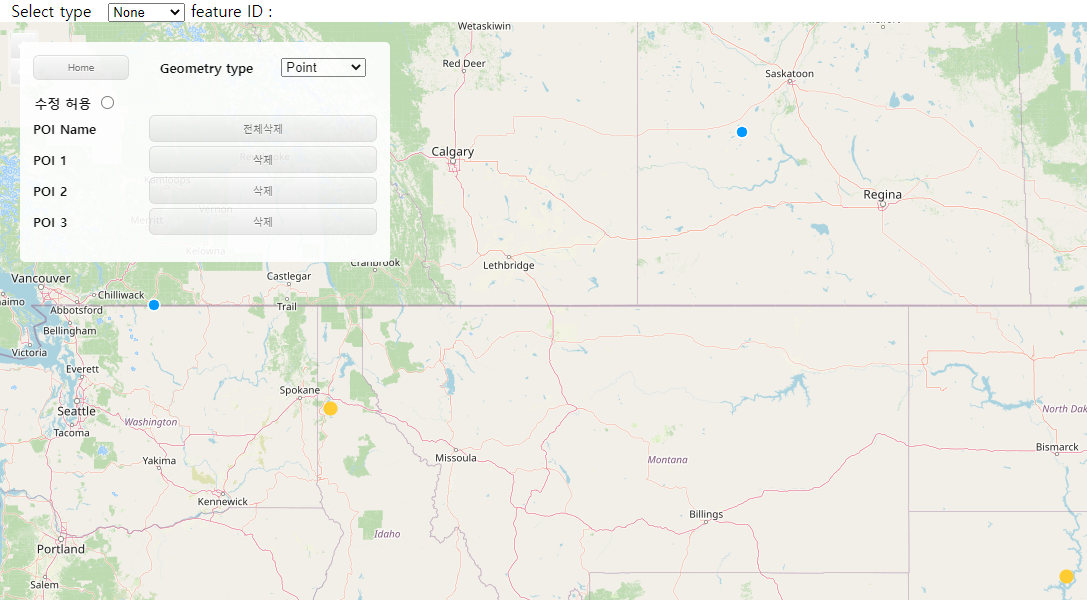

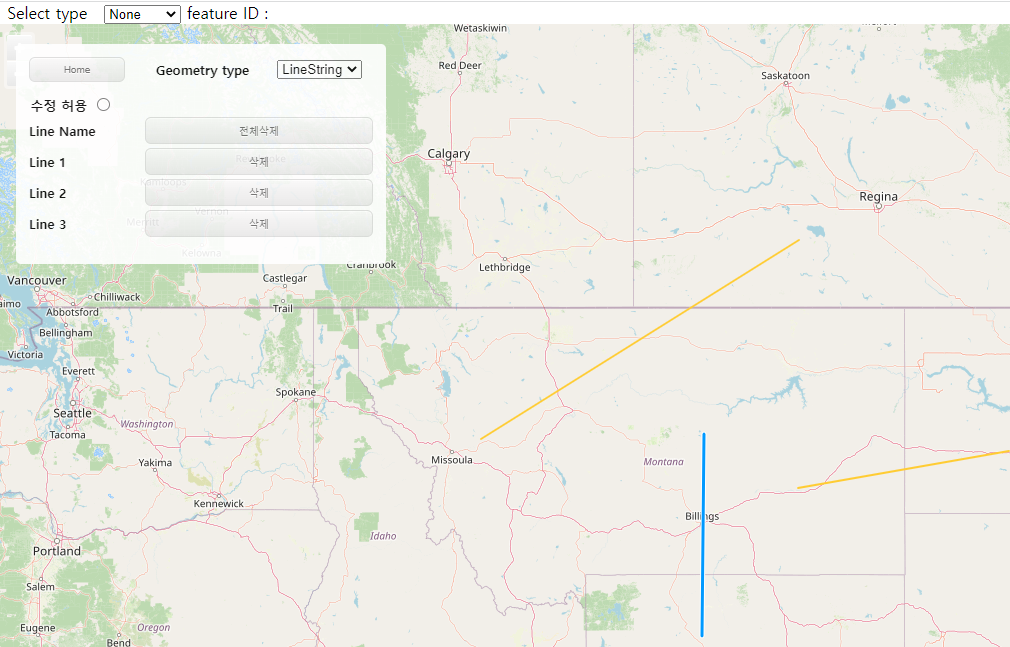

- 지도위에 포인트, 라인, 폴리곤 (타입별)생성
- 생성시 리스트 출력 / 삭제시 리스트 삭제
- 스크롤 적용
- 생성된 객체별 자동 ID 부여
- 객체 선택
- 객체 선택시 상단에 객체정보 조회
- 객체 선택 옵션 변경 가능 (Click / Hover / Alt + Click)
- 객체 수정 / 삭제
브이월드를 OpenLayers 지도와 연동하여 주소 검색 기능 구현하기

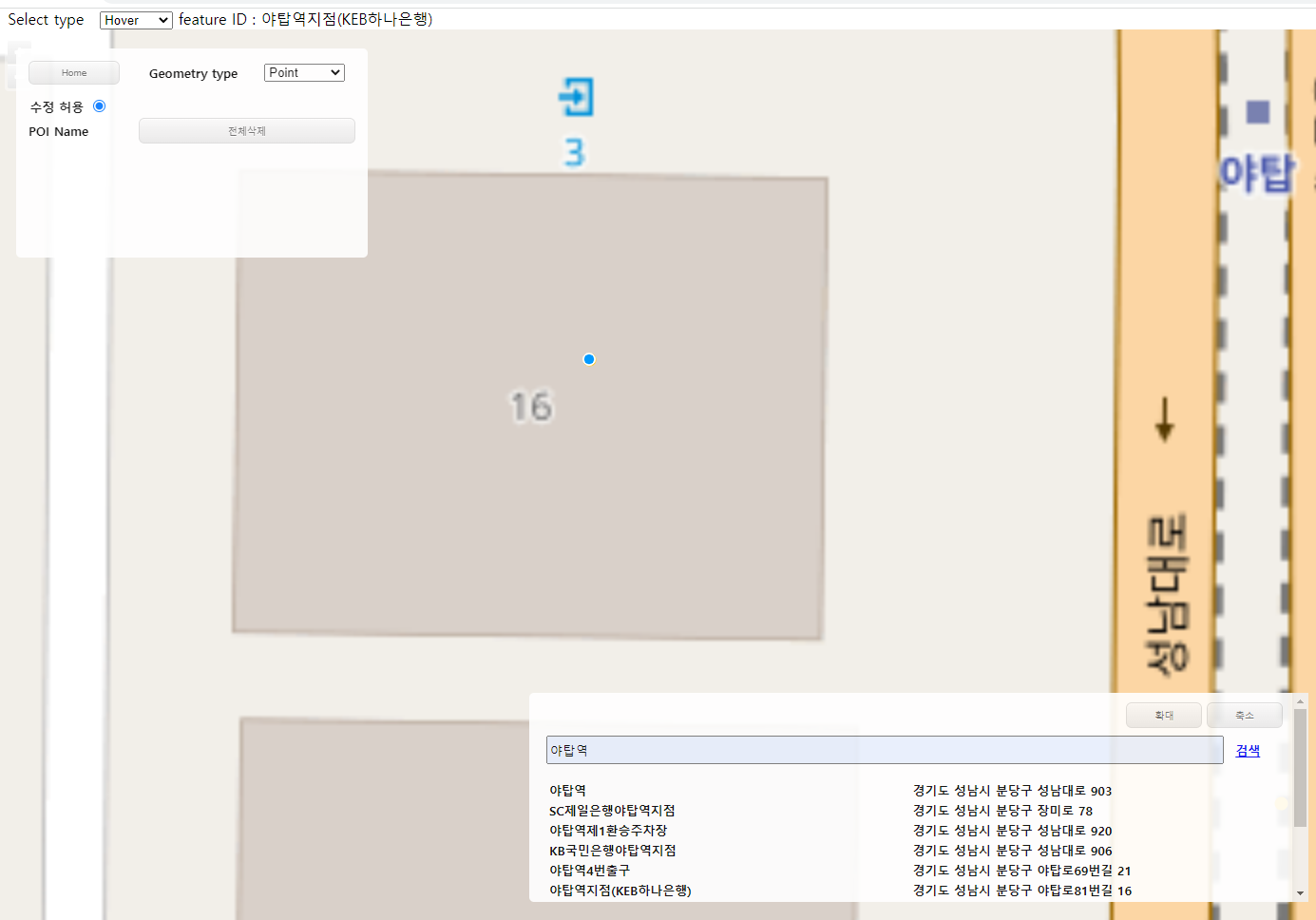

- 키워드 검색시 해당 주소명 / 도로명 주소 등 조회 가능

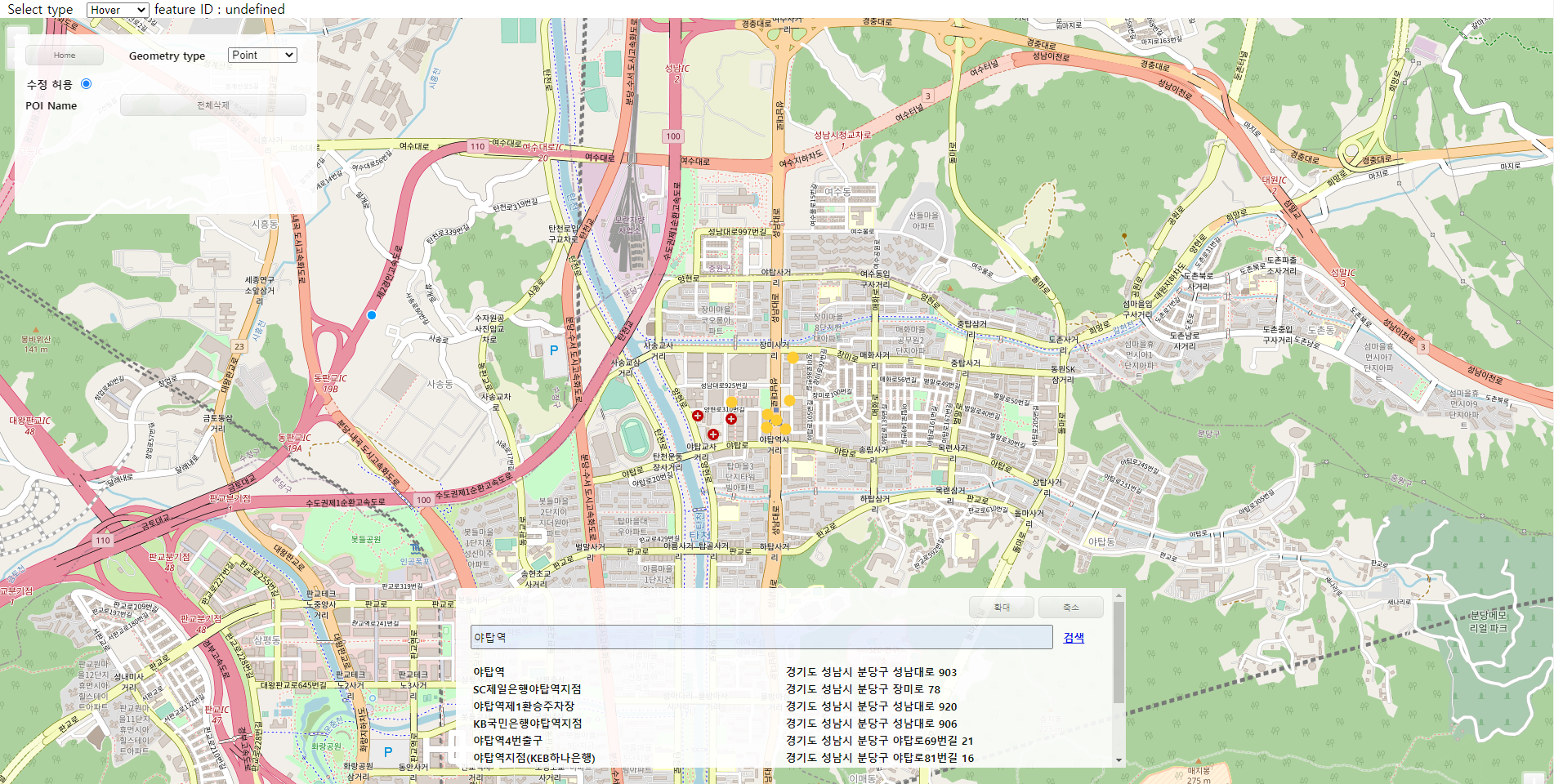

- 검색 결과 위치에 포인트 생성
- 리스트 클릭시 해당 위치로 이동
- 포인트 선택시 해당 장소명 표시
소스코드
openlayers.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<!-- CSS -->
<link rel="stylesheet" href="resources/css/openlayers.css">
<link rel="stylesheet" href="https://openlayers.org/en/v4.6.5/css/ol.css" type="text/css">
<!-- favicon.ico -->
<link rel="shortcut icon" href="#">
<!-- The line below is only needed for old environments like Internet Explorer and Android 4.x -->
<script src="https://cdn.polyfill.io/v2/polyfill.min.js?features=requestAnimationFrame,Element.prototype.classList,URL"></script>
<script src="https://openlayers.org/en/v4.6.5/build/ol.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.4.1/jquery.min.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/paginationjs/2.1.4/pagination.min.js"></script>
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/paginationjs/2.1.4/pagination.css"/>
<title>OpenLayers</title>
<style> html, body {height: 100%; padding: 0; margin: 0; } #map { height: 100%; width: 100%;} </style>
</head>
<body>
<!-- Search place and show lists -->
<div id="vwInterface">
<div id="vwBtn">
<button class="vwBtn" onclick="vwMaximize()">확대</button>
<button class="vwBtn" onclick="vwMinimize()">축소</button>
</div>
<form id="searchForm" action="#" class="form_data" onsubmit="return false;search();">
<input type="hidden" name="page" value="1" />
<input type="hidden" name="type" value="PLACE" />
<input type="hidden" name="request" value="search" />
<input type="hidden" name="apiKey" value="F9456F32-95A9-3CAD-8364-926B6B613A6A" />
<input type="hidden" name="domain" value="http://localhost:8080" />
<input type="hidden" name="crs" value="EPSG:3857" />
<div>
<input type="text" id="searchValue" name="query" value="" placeholder="장소를 입력해주세요" style="width: 90%;" /> <a href="javascript:vwSrch();" >검색</a>
</div>
</form>
<table id=vwTable></table>
<div class="pagination">
<section>
<div id="data-container"></div>
<div id="pagination"></div>
</section>
</div>
</div>
<!-- OpenLayers Map -->
<div id="map" class="map">
<!-- Select Interactions -->
<div id="selectOpt">
<form class="form-inline">
<label> Select type </label>
<select id="type" class="form-control">
<option value="singleclick" selected>None</option>
<option value="click">Click</option>
<option value="pointermove">Hover</option>
<option value="altclick">Alt+Click</option>
</select>
<span id="status">feature ID : </span>
</form>
</div>
<!-- Draw and Modify Interactions -->
<div id="interface">
<table id="menuTable" style="width: 350px;">
<thead>
<tr>
<th>
<button id="homeBtn" onclick="goHome();">Home</button>
</th>
<th>
<label> Geometry type</label>
</th>
<th>
<form class="form-inline">
<select id="olObjType">
<option value="Point">Point</option>
<option value="LineString">LineString</option>
<option value="Polygon">Polygon</option>
</select>
</form>
</th>
</tr>
</thead>
</table>
<!-- Tab content -->
<div id="updtTab">
<span> 수정 허용</span>
<input type="radio" name="updtBtn" onclick="updtOl()">
</div>
<div id="POI" class="tabcontent">
<table class="tabTable" id="olPOITable" style="width: 350px;">
<tr>
<td>POI Name</td>
<td colspan="2"><button onclick="emptyOl(1);">전체삭제</button></td>
</tr>
</table>
</div>
<div id="Line" class="tabcontent">
<table class="tabTable" id="olLineTable" style="width: 350px;">
<tr>
<td>Line Name</td>
<td colspan="2"><button onclick="emptyOl(2);">전체삭제</button></td>
</tr>
</table>
</div>
<div id="Polygon" class="tabcontent">
<table class="tabTable" id="olPynTable" style="width: 350px;">
<tr>
<td>Polygon Name</td>
<td colspan="2"><button onclick="emptyOl(3);">전체삭제</button></td>
</tr>
</table>
</div>
</div>
</div>
<!-- JS File -->
<script src="resources/js/page.js"></script>
<script src="resources/js/ol/main.js"></script>
<script src="resources/js/ol/main-list.js"></script>
<script src="resources/js/ol/olObj.js"></script>
<!-- Pointer events polyfill for old browsers, see https://caniuse.com/#feat=pointer -->
<script src="https://cdn.jsdelivr.net/npm/elm-pep@1.0.6/dist/elm-pep.js"></script>
</body>
</html>
main.js
// variable settings for initial load
var source = new ol.source.Vector();
var vector = new ol.layer.Vector({ //vector settings for object selection
source: source,
style: new ol.style.Style({
fill: new ol.style.Fill({
color: 'rgba(255, 255, 255, 0.2)'
}),
stroke: new ol.style.Stroke({
color: '#ffcc33',
width: 2
}),
image: new ol.style.Circle({
radius: 7,
fill: new ol.style.Fill({
color: '#ffcc33'
})
})
})
});
var raster = new ol.layer.Tile({
source: new ol.source.OSM()
});
var map = new ol.Map({
layers: [raster, vector],
target: 'map',
view: new ol.View({
center: [-11000000, 4600000],
zoom: 4
})
});
var draw, snap; // global so we can remove them later
var typeSelect = document.getElementById('olObjType'); // geometry type
var modify = new ol.interaction.Modify({source: source}); // variable for modify
/**
* variables for select features
*/
var select = null; // refer to currently selected interaction
var selectSingleClick = new ol.interaction.Select({}); // select interaction working on "single click"
var selectClick = new ol.interaction.Select({ // select interaction working on "click"
condition: ol.events.condition.click,
filter : function(feature, layer){
document.getElementById('status').innerHTML = 'feature ID : ' + feature.getId();
}
});
var selectPointerMove = new ol.interaction.Select({ // select interaction working on "pointer move"
condition: ol.events.condition.pointerMove,
filter : function(feature, layer){
document.getElementById('status').innerHTML = 'feature ID : ' + feature.getId();
}
});
var selectAltClick = new ol.interaction.Select({ // select interaction working on "alt click"
condition: function(mapBrowserEvent) {
return ol.events.condition.click(mapBrowserEvent) &&
ol.events.condition.altKeyOnly(mapBrowserEvent);
},
filter : function(feature, layer){
document.getElementById('status').innerHTML = 'feature ID : ' + feature.getId();
}
});
var selectElement = document.getElementById('type'); // select type options
/**
* change select type
*/
var changeInteraction = function() {
if (select !== null) {
map.removeInteraction(select);
}
var value = selectElement.value;
if (value == 'singleclick') {
select = selectSingleClick;
} else if (value == 'click') {
select = selectClick;
} else if (value == 'pointermove') {
select = selectPointerMove;
} else if (value == 'altclick') {
select = selectAltClick;
} else {
select = null;
}
if (select !== null) {
map.addInteraction(select);
select.on('select', function(e) {
});
}
};
/**
* onchange callback on the select element
*/
selectElement.onchange = changeInteraction;
changeInteraction();
/**
* Change select box's value so draw method can activate
*/
$(function(){
$('#olObjType').change();
})
/**
* Add draw type instance
*/
function addInteractions() {
draw = new ol.interaction.Draw({
source: source,
type: typeSelect.value
});
map.addInteraction(draw);
snap = new ol.interaction.Snap({source: source}); // draw and modify together
map.addInteraction(snap);
}
/**
* Handle change event
*/
typeSelect.onchange = function() {
// tab menu change
if(typeSelect.value == "Point") {
olCtgry(event, 'POI');
} else if(typeSelect.value == "LineString") {
olCtgry(event, 'Line');
} else if(typeSelect.value == "Polygon") {
olCtgry(event, 'Polygon');
} else {
alert('ERROR Occurred')
}
// remove and add interaction on map
map.removeInteraction(draw);
map.removeInteraction(snap);
addInteractions();
// add list when draw ends
draw.on('drawend', function (e) {
if(typeSelect.value == "Point") {
createOlPOI();
OLPOICOUNT++;
var POIID = OLPOICOUNT-1;
e.feature.setId('POINT_' + POIID);
} else if(typeSelect.value == "LineString") {
createOlLine();
OLLINECOUNT++;
var LINEID = OLLINECOUNT-1;
e.feature.setId('LINE_' + LINEID);
} else if(typeSelect.value == "Polygon") {
createOlPyn();
OLPYNCOUNT++;
var PYNID = OLPYNCOUNT-1;
e.feature.setId('POLYGON_' + PYNID);
} else {
alert('ERROR Occurred')
}
});
};
// Add draw type instance for real
addInteractions();olObj.js
// create object
var OLPOICOUNT = 1;
var OLLINECOUNT = 1;
var OLPYNCOUNT = 1;
function createOlPOI() {
$('#olPOITable').append('<tr class="olPOIList" id="' + OLPOICOUNT + '">'
+ '<td><span> POI ' + OLPOICOUNT + '</span></td>'
+ '<td colspan="2"><button onclick="rmvOl(this, 1)">삭제</button></td>'
+ '</tr>');
}
function createOlLine() {
$('#olLineTable').append('<tr class="olLineList" id="' + OLLINECOUNT + '">'
+ '<td><span> Line ' + OLLINECOUNT + '</span></td>'
+ '<td colspan="2"><button onclick="rmvOl(this, 2)">삭제</button></td>'
+ '</tr>');
}
function createOlPyn() {
$('#olPynTable').append('<tr class="olPynList" id="' + OLPYNCOUNT + '">'
+ '<td><span> Polygon ' + OLPYNCOUNT + '</span></td>'
+ '<td colspan="2"><button onclick="rmvOl(this, 3)">삭제</button></td>'
+ '</tr>');
}
/**
* empty all objects
* @param olType
*/
function emptyOl(olType) {
alert('empty all');
// empty lists
if(olType == 1) {
$('.olPOIList').remove();
} else if(olType == 2) {
$('.olLineList').remove();
} else if(olType == 3) {
$('.olPynList').remove();
} else {
}
// empty features
var features = vector.getSource().getFeatures();
features.forEach((feature) => {
vector.getSource().removeFeature(feature);
});
};
/**
* Remove objects (POI, Line, Polygon)
* @param olObj
* @param olId
*/
function rmvOl(olObj, olId) {
// common variable
var id = olObj.parentElement.parentElement.id;
var imgId = parseInt(id) + 1;
// remove lists and features
if(olId == 1) {
$('.olPOIList').remove('#' + id);
var features = vector.getSource().getFeatureById('POINT_' + id);
} else if(olId == 2) {
$('.olLineList').remove('#' + id);
var features = vector.getSource().getFeatureById('LINE_' + id);
} else if(olId == 3) {
$('.olPynList').remove('#' + id);
var features = vector.getSource().getFeatureById('POLYGON_' + id);
} else {
}
vector.getSource().removeFeature(features);
}
/**
* update OpenLayers so it can be modified
*/
function updtOl() {
map.addInteraction(modify);
}
page.js
// Move page
function goHome() {
location.replace('/mymap');
}
function goXdworld() {
location.href="xdworld.do";
}
function goOpenLayers() {
location.href="openlayers.do";
}
// Open XDWORLD's category
function xdwCtgry(ctgry, id) {
// initialize
move();
setMouseState(1);
// open category
cmmnCtgry(ctgry, id);
// layerList (POI, Line, Polygon)
var layerList = new Module.JSLayerList(true);
var layer = layerList.createLayer("POI_TEST", Module.ELT_3DPOINT);
let lineLayer = layerList.nameAtLayer("Line_Option");
var pynLayer = layerList.nameAtLayer("POLYGON_LAYER");
if (pynLayer == null) {
pynLayer = layerList.createLayer("POLYGON_LAYER", Module.ELT_POLYHEDRON);
}
// layer visible settings (POI, Line, Polygon)
if(id == "POI") {
layer.setVisible(true);
if(lineLayer != null) {
lineLayer.setVisible(false);
}
pynLayer.setVisible(false);
} else if(id == "Line") {
layer.setVisible(false);
if(lineLayer != null) {
lineLayer.setVisible(true);
}
pynLayer.setVisible(false);
} else if(id == "Polygon") {
layer.setVisible(false);
if(lineLayer != null) {
lineLayer.setVisible(false);
}
pynLayer.setVisible(true);
} else {
alert('ERROR Occurred')
}
}
// Open OpenLayers' category
function olCtgry(ctgry, id) {
// empty all objects and lists before changing category
var features = vector.getSource().getFeatures();
features.forEach((feature) => {
vector.getSource().removeFeature(feature);
});
$('.olPOIList').remove();
$('.olLineList').remove();
$('.olPynList').remove();
cmmnCtgry(ctgry, id);
}
/**
* Open category method for both XDWORLD and OpenLayers
* @param ctgry // event
* @param id // POI, line, polygon
*/
function cmmnCtgry(ctgry, id) {
// change tab menu
var i, tabcontent, tablinks;
tabcontent = document.getElementsByClassName("tabcontent");
for (i = 0; i < tabcontent.length; i++) {
tabcontent[i].style.display = "none";
}
tablinks = document.getElementsByClassName("tablinks");
for (i = 0; i < tablinks.length; i++) {
tablinks[i].className = tablinks[i].className.replace(" active", "");
}
document.getElementById(id).style.display = "block";
try {
ctgry.currentTarget.className += " active";
} catch (e) {
// TODO: handle exception
}
}
/**
* VWORLD results paginations
* @param data // data from vwSrch of main-list.js
*/
function vwPaging(data) {
let container = $('#pagination');
container.pagination({
dataSource: [
data.response.result.items
],
callback: function (data, pagination) {
var dataHtml = '';
for(var i=1; i <= data[0].length-1; i++) {
$.each(data, function (index, item) {
dataHtml += '<tr><td><span class="vwList" onclick="goVwPlace(' // call function that can go to place
+ data[0][i].point.x*1 + ','
+ data[0][i].point.y*1 + ');">'
+ data[0][i].title + '</span></td>' // show place lists in Table
+ '<td><span>' + data[0][i].address.road + '</span></td></tr>';
});
}
dataHtml += '';
$("#vwTable").html(dataHtml);
}
})
}
main-list.js
var vwSrch = function(){
$.ajax({
type: "get",
url: "http://api.vworld.kr/req/search",
data : $('#searchForm').serialize(),
dataType: 'jsonp',
async: false,
success: function(data) {
$('#vwTable').empty();
if(data.response.status =="NOT_FOUND"){
alert("검색결과가 없습니다.");
}else{
for(var o in data.response.result.items){
if(o==0){
move(data.response.result.items[o].point.x*1,data.response.result.items[o].point.y*1);
} else {
addVwMarker(data.response.result.items[o].point.x*1, data.response.result.items[o].point.y*1, data.response.result.items[o].title);
vwPaging(data);
}
}
}
},
error: function(xhr, stat, err) {}
});
}
var move = function(x,y){
map.getView().setCenter([ x, y ]); // move map
map.getView().setZoom(15); // set zoom level
}
/**
* move to place when click list
* @param x
* @param y
*/
function goVwPlace(x,y) {
map.getView().setCenter([ x, y ]); // move map
map.getView().setZoom(20); // set zoom level
}
/**
* maximize and minimize table
*/
function vwMaximize() {
$('#vwInterface').css({
margin: '45rem 0rem 0rem 35rem',
height: '200px',
width: '50rem'
});
}
function vwMinimize() {
$('#vwInterface').css({
margin: '5rem 0rem 0rem 95rem',
height: '4rem',
width: '20rem'
});
}
/**
* add marker when search success
* @param x
* @param y
* @param name
*/
function addVwMarker(x,y,name) {
const point = new ol.Feature({ // make feature
geometry: new ol.geom.Point([x,y]), // set position
})
point.setId(name);
vector.getSource().addFeature(point); //add feature to data source
}
/**
* Enter key function
* @param e
*/
$(document).keyup(function(e) {
let code = e.keyCode || e.which;
if ($('#searchForm:focus') && (e.key=='Enter') || code==13) { // focus and enter key
vwSrch();
}
});
openlayers.css
@charset "UTF-8";
td {
width: 7rem;
}
button {
box-shadow:inset 0px 1px 0px 0px #ffffff;
background:linear-gradient(to bottom, #f9f9f9 5%, #e9e9e9 100%);
background-color:#f9f9f9;
border-radius:6px;
border:1px solid #dcdcdc;
display:inline-block;
cursor:pointer;
color:#666666;
font-size:10px;
padding:6px 24px;
text-decoration:none;
text-shadow:0px 1px 0px #ffffff;
width: -webkit-fill-available;
}
button:hover {
background:linear-gradient(to bottom, #e9e9e9 5%, #f9f9f9 100%);
background-color:#e9e9e9;
}
button:active {
position:relative;
top:1px;
}
.tablinks {
box-shadow:inset 0px 1px 0px 0px #ffffff;
background:linear-gradient(to bottom, #ededed 5%, #dfdfdf 100%);
background-color:#ededed;
border-radius:6px;
border:1px solid #dcdcdc;
display:inline-block;
cursor:pointer;
color:#777777;
font-family:Arial;
font-size:15px;
font-weight:bold;
padding:6px 24px;
text-decoration:none;
text-shadow:0px 1px 0px #ffffff;
width: -webkit-fill-available;
}
.tablinks:hover {
background:linear-gradient(to bottom, #dfdfdf 5%, #ededed 100%);
background-color:#dfdfdf;
}
.tablinks:active {
position:relative;
top:1px;
}
.mapLoad {
position: absolute;
top: 50%;
left: 43.3%;
}
.map {
width: 100%;
height: 400px;
}
a.skiplink {
position: absolute;
clip: rect(1px, 1px, 1px, 1px);
padding: 0;
border: 0;
height: 1px;
width: 1px;
overflow: hidden;
}
a.skiplink:focus {
clip: auto;
height: auto;
width: auto;
background-color: #fff;
padding: 0.3em;
}
.tabcontent {
display: none;
}
.vwList:hover {
cursor: pointer;
}
.vwBtn {
width: 5rem;
}
#pagination {
margin-left: 42.5%;
}
#map:focus {
outline: #4A74A8 solid 0.15em;
}
#interface {
display: block;
position: absolute;
z-index: 9;
background-color: #FFFFFF;
padding: 10px 10px 10px 10px;
border-radius: 5px;
font-size: 13px;
font-weight: bold;
opacity: 0.9;
height:200px;
overflow: auto;
margin: 20px;
}
#vwInterface {
display: block;
position: absolute;
z-index: 9;
background-color: #FFFFFF;
padding: 10px 10px 10px 10px;
border-radius: 5px;
font-size: 13px;
font-weight: bold;
opacity: 0.9;
height:200px;
overflow: auto;
margin: 45rem 0rem 0rem 35rem;
width: 50rem;
}
#menuTable {
padding-bottom: 10px;
}
#homeBtn {
width: -webkit-fill-available;
}
#vwTable {
width: -webkit-fill-available;
margin: 0.5rem;
}
#searchValue {
width: 95%;
height: 1.5rem;
margin: 0.5rem;
}
#vwBtn {
text-align: end;
}728x90
'GIS Project' 카테고리의 다른 글
| JIRA 사용 후기 (0) | 2024.02.26 |
|---|---|
| 3차원 실내공간정보 구축 과정 (1) | 2023.11.26 |
| 공간정보관리 플랫폼 만들기 (기능 소개) (0) | 2023.11.22 |
